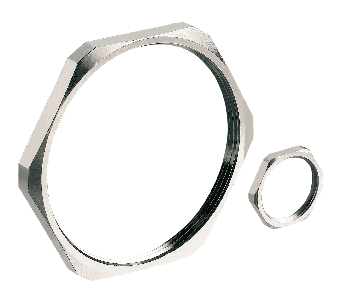

Brass Lock Nuts Brass Nickel plated lock nuts |
 |
| BRASS LOCK NUTS DIN 439 Brass Lock nuts Half nuts self locking nuts | |
| In certain applications, installing cable glands directly on enclosure or equipment wall surfaces is not possible. In such situations Brass Lock Nuts are used to secure cable glands. We can also offer Stainless Steel lock nuts metric lock nuts. | |
| Technical Details | |
| Material Threads available |
Brass, Nickel Plated Pg, Metric & NPT |
| Pg Thread | ||||
| For Gland Size | Cat. No. | Standard Pack (Pieces) |
Spanner (mm) | Height (mm) |
| Pg 7 Pg 9 Pg 11 Pg 13.5 Pg 16 Pg 21 Pg 29 Pg 36 Pg 42 Pg 48 |
BSL-01 BSL-02 BSL-03 BSL-04 BSL-05 BSL-06 BSL-07 BSL-08 BSL-09 BSL-10 |
50 50 50 50 25 25 20 15 12 12 |
15 18 21 23 26 32 41 51 60 64 |
2.8 2.8 3.0 3.0 3.0 3.5 4.0 5.0 5.0 5.5 |
| Metric Thread | ||||
| For Gland Size | Cat. No. | Standard Pack (Pieces) |
Spanner (mm) | Height (mm) |
| M 12 x 1.5 M 16 x 1.5 M 20 x 1.5 M 25 x 1.5 M 32 x 1.5 M 40 x 1.5 M 50 x 1.5 M 63 x 1.5 |
BMBL-01 BMBL-02 BMBL-03 BMBL-04 BMBL-05 BMBL-06 BMBL-07 BMBL-08 |
50 50 50 25 25 20 15 12 |
15 19 24 30 36 46 60 70 |
2.8 3.0 3.5 4.0 5.0 5.0 5.0 5.0 |
| NPT Thread | ||||
| For Gland Size | Cat. No. | Standard Pack (Pieces) |
Spanner (mm) | Height (mm) |
| NPT 3/8" NPT 1/2" NPT 3/4" NPT 1" |
BPFL-01 BPFL-02 BPFL-03 BPFL-04 |
50 50 50 25 |
22 27 33 43 |
5 5 5 5 |
