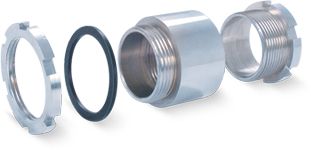

Brass Marine Cable Glands

Size	10 mm 15mm 20mm 25mm 30mm 35mm 40mm 50mm 55mm 60mm 70mm 75mm 80mm 90mm
Application	Outdoor or Indoor for use with all types of braided or unarmoured Marine electrical cable fittings
Ingress Protection	IP54 IP66
Optional Thread	ISO Metric, NPT, NPS, BSP, BSPT, PG
Finish	Chrome Finish, Brass Finish, Nickel Finish or as specified
Material	Brass BS 2874 CZ121 Pb3
Sizes	Metric from 10 mm to 60 mm in JIS, PG 7 to PG 48 in DIN from M 16 to M 90 in BS  JIS  8801 JIS 8802 JIS 8803

Technical Data:

Size A B C D E F G H I 10 45.00 21.50 10.00 3/8" BSP 11.00 5.00 28.00 22.00 4.00 15 50.00 27.50 15.00 1/2" BSP 11.00 5.00 31.20 26.20 4.00 20 53.00 33.50 20.00 3/4" BSP 10.00 5.00 37.00 32.00 6.00 25 60.00 41.50 25.00 1" BSP 11.00 6.00 46.00 40.00 6.00 30 65.00 49.50 30.00 1.1/4" BSP 12.00 6.00 56.00 48.00 8.00 35 70.00 55.50 40.00 1.1/2" BSP 12.00 6.00 63.000 55.00 8.00 40 70.00 55.50 40.00 1.1/2" BSP 12.00 6.00 63.00 55.00 8.00 45 85.00 69.50 50.00 2" BSP 12.00 6.00 76.00 67.00 10.00 50 85.00 69.50 50.00 2" BSP 12.00 6.00 76.00 67.00 10.00 55 87.00 85.50 60.00 2.1/2" BSP 12.00 6.00 95.00 86.00 10.00 60 88.00 85.50 60.00 2.1/2" BSP 12.00 6.00 95.00 86.00 10.00 65 100.00 99.50 70.00 3" BSP 14.00 6.00 112.00 100.00 12.00 70 110.00 99.50 70.00 3" BSP 14.00 6.00 112.00 100.00 12.00
